CIVIL WORK

• 1. Plinth height will be 5’.0”from existing ground level.
• 2. Plinth beam will be 250m m thick, concrete proportion (1:1.5:3)
• 3. Column & Beam concrete casting proportion (1:1.5:3)
• 4. Fly Ash Brick work 10” thick of (1:6) mortar in foundation plinth & superstructure.
• 5. All windows having plane chajja in outside.
• 6. Roof slab thickness will be 100 mm.
• 7. Ceiling plastering will be with 6 mm in 1: 4 mortars.
• 8. Outside & inside plastering will be 12 mm thick & in 1:6 mortar.
• 9. 3 numbers of toilets in one duplex house as per requirement.
• 10. 1 Nos .of Kitchens shall be given in one duplex house.
• 11. PCC (1:4:8).
• 12. Over head tank (1200 ltr.) and head room with sheet roof.
• 13. Rack in one bed room & in Kitchen.
• 14. 5” parapet wall in top terrace.

FLOORING WORK

• 1. 24” x 24” Vitrified Tile flooring in all rooms ranging to Rs.45/- per Sqft..
• 2. Toilet flooring (Anti-skid Tile)
• 3. Kitchen slab will be of black granite & staircase will be of marble .
• 4. Glaze tile in kitchen 3’ height from the slab ranging to Rs.30/- per Sqft...
• 5. Glaze tile in toilet up to 7’ height ranging to Rs.30/- per Sqft...
• 6. Checkered tile flooring in portico area.

PLUMBING

• 1. In attached toilet hot & cold mixture, one shower, one tap, one cistern, one corner basin & commode in attach toilet.
• 2. One shower, one cistern, two tap, one basin and Orissa pan in common toilet. Indian Pan can be converted to Commode on demand.
• 3. One tap point in kitchen & one wash basin in dining.
• 4. One washing machine point will be provided as per requirement.
• 5. One tap point in portico for car washing.
• 6. Wiring will be with PVC pipe & fittings.

ELECTRICAL

• 1. Providing concealed PVC wiring & fittings with ( Anchor, Havells ,Finolex)
• 2. Anchor Roma or Maru modular switches will be provided. One AC point with wiring is to be provided.

WOODWORK

• 1. Door & Window frame will be of Sal wood.
• 2. Main Door will be of Teak (One No. in a duplex house).
• 3. Window shutter will be made in Aluminum with Glass & Steel fitting.
• 4. All inside Door will be of flush wood with both side laminate paste.
• 5. Bathroom Door & Frame will be made in laminated flush door

PAINTING

• 1. Doors, Windows & grills will be finished with enamel paints.
  (Berger, Asian paints)
• 2. Bedrooms & Drawing Room, Dining will be finished with wall putty any plastic paint.(Berger, Asian paints)
• 3. Kitchen & toilet wall finished with putty and plastic paint .
• 4. Teak door shall be finished with Teak polish.
• 5. Outside wall will be finished with weather coat paint.

IRON AND STEEL WORK

• 1. For RCC work steel will be of TATA/ Vizag/SAIL make & for all construction work cement will be of ACC, Ultratech, Konark,
• 2. Window grills shall be as per design.
• 3. Stainless steel railing shall be given in stair-case.

EXTRA CHARGABLE WORK

SCHEDULE OF PAYMENT

• 1. 10% of total amount at the time of advance.
• 2. 10% of total amount on completion of foundation
• 3. 10% of total amount on ground floor roof casting
• 4. 15% of total amount on completion of first floor roof casting
• 5. 20% of total amount on completion of internal plastering
• 6. 20% of total amount on completion of flooring & external plastering
• 7. 10% of total amount on completion of final fitting of wood, electrical & phd and outside color.
• 8. 5% of total amount. at the time of handover.

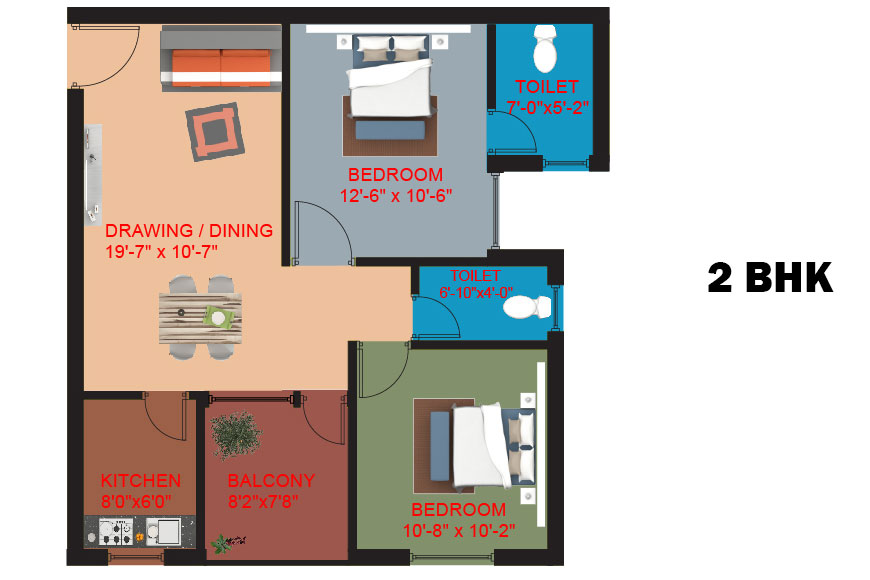

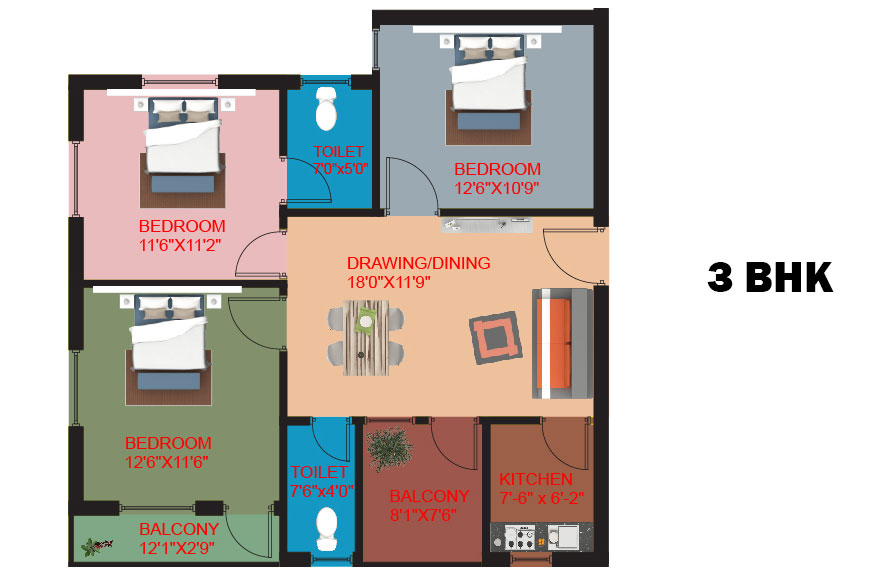

• 2D
• 3D
